AV-6000-FS-SP8-BD-220

AV-6000-FS-SP8-BD-220

0.00
0.00

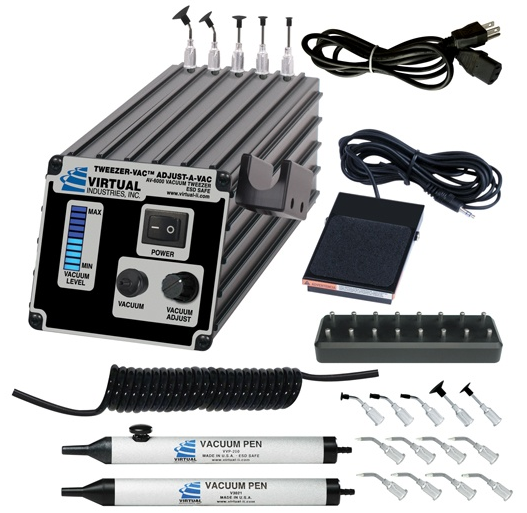

The ADJUST-A-VAC® was developed as a result of customer concerns about manual handling of very thin/delicate substrates, wafers, MEMS devices and other very fragile components.  This vacuum-tweezer allows the operator to adjust the vacuum level from just below atmospheric pressure to up to ten inches of mercury depending on the fragility of the part being handled.  An integrated  ten segment bar-graph-display visibly shows the vacuum level present during handling operations.   The bar graph will show minimum vacuum pressure until a part is grasped and then the bar graph displays the vacuum level presented to the part being handled.  Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles.  This Vacuum Tweezer is available in various kits depending on your handling application.  Kits are available in 110 or 220 volt operation.

This ESD safe kit features:

  • Five vacuum tip holders on top of tool.
  • Bar graph power-on and vacuum-level indicator.
  • Adjustment knob for vacuum level.F
  • Rubber no-skid feet.
  • ESD ground connection is by three wire power cord.
  • Produces vacuum of up to ten inches of mercury.
  • Replaceable inlet filter.
  • Side mounted handle holder.

This kit includes:

  • COILED-VACUUM-HOSE-5 (VCH-2.5MM-5 BLACK)
  • PUSH-BUTTON-VACUUM-PEN (VVP-200-2.5MM)
  • FOOT SWITCH WITH VACUUM PEN WITHOUT CONTROL HOLE (VFS-1)
  • VACUUM-CUP-KIT-9 (VCS-9-B)
  • ESD-SAFE DELRIN SMALL PARTS TIPS (VSPT-TIPS-8-BD)
  • 16 POSITION TIP ORGANIZER/HOLDER (VTH-16).
  • 3 WIRE POWER CORD
  • adjust-a-vac®开发顾客因担心手工处理的非常薄的/精致的基板,晶圆,MEMS器件和其他非常脆弱的部件。这种真空镊子允许操作者调节真空度低于大气压力到水星取决于被处理部分的脆弱性十英寸。集成的十段条形图显示了操作过程中的真空度。条形图将显示最小真空压力,直到一个部件被抓住,然后条形图显示真空度显示给被处理的部分。此外,真空端口集成了用户可更换的入口过滤器,保护工具免受灰尘颗粒的影响。这种真空镊子在取决于你的应用可以处理各种试剂盒。工具包可在110或220伏操作。


    此ESD安全套件功能:


    五个真空尖端保持器顶部的工具。
    条形图上电功率和真空度指示器。
    真空度调节旋钮。
    橡胶防滑脚。
    ESD接地是三线电源线。
    产生高达十英寸汞柱的真空。
    可更换进口过滤器。
    侧装手柄支架。
    此套件包括:


    coiled-vacuum-hose-5(vch-2.5mm-5黑)
    push-button-vacuum-pen(vvp-200-2.5mm)
    脚踏开关和真空吸笔没有控制孔(vfs-1)
    vacuum-cup-kit-9(vcs-9-b)
    esd-safe Delrin小部分的提示(vspt-tips-8-bd)
    16位置提示组织者/座(vth-16)。
    3线电源线
